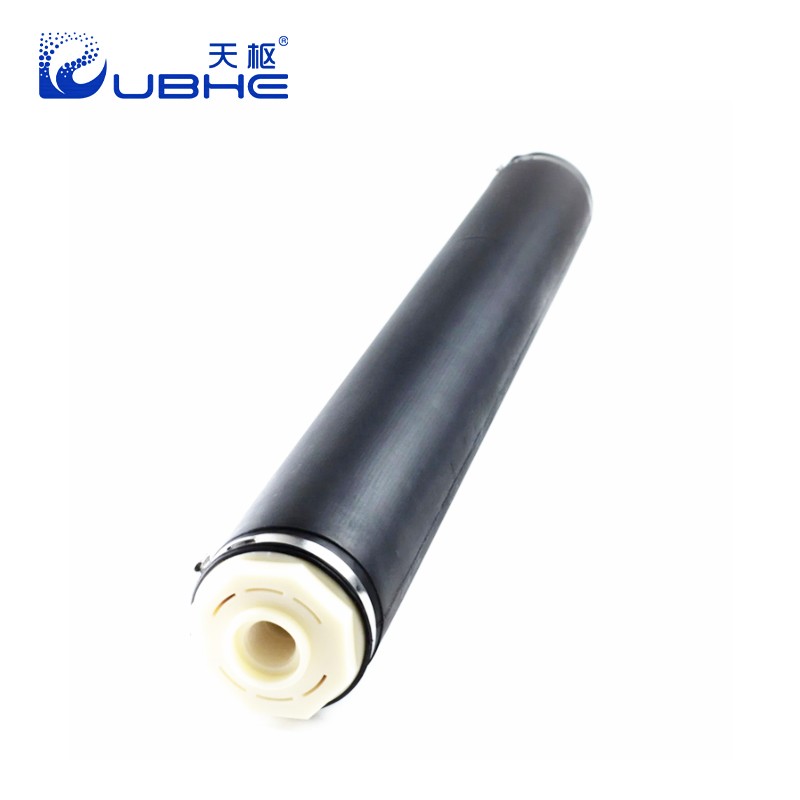

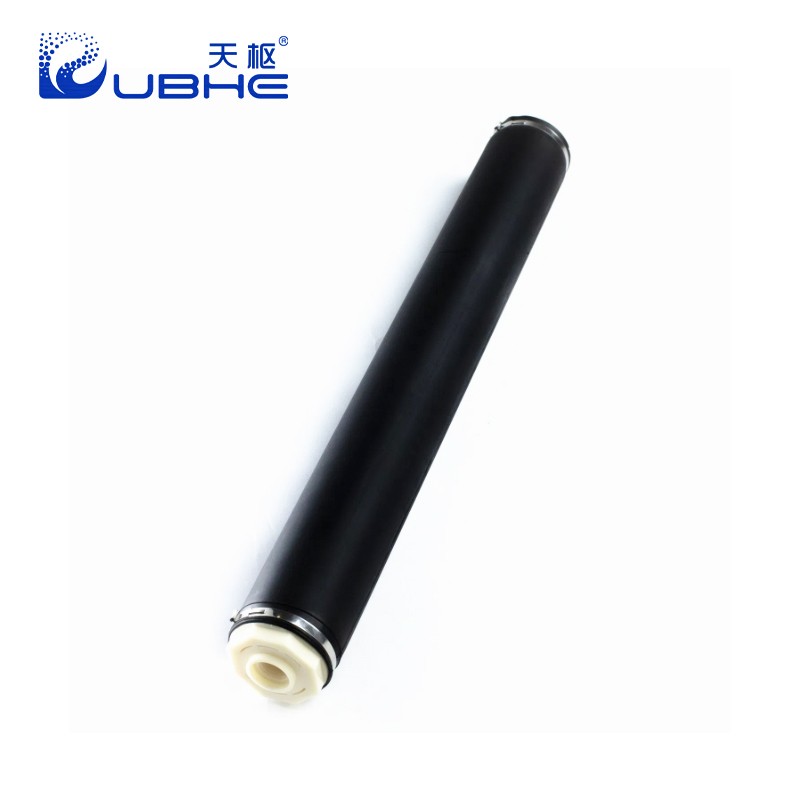

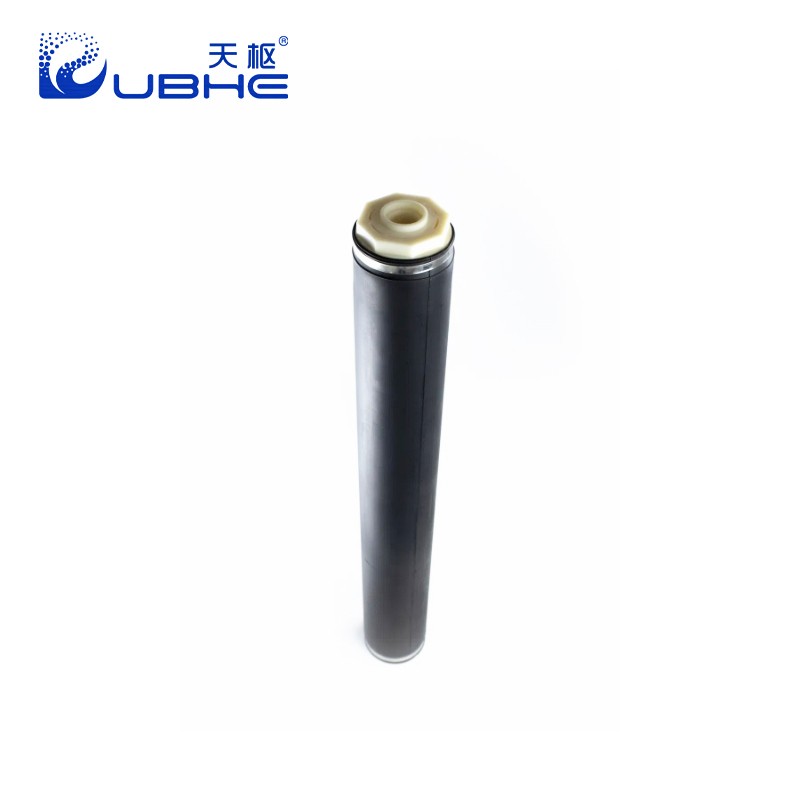

SSI Fine Bubble Tube Diffuser AFT-E

MODEL:AFTS(N)-E 21000/AFTS(N)31000
Tube Diameter: 2.4’’(62mm) 3.6’’ (91mm)
Active Surface Area(m2):0.15/0.22
Design Flow (m³/hr): 2.6-14.5/3.4-22
Membrane Thickness(mm): 2
Bubble Size(mm):1-2
Hole Size:1/2mm
Slit Quantity:13525/22500
SOTE(%)(4.5m Water Depth):22-40/31-59
Service Life(year):≥5

EMAIL


SSI Tube Diffusers are designed to offer high oxygen transfer efficiency, low pressure loss, and a simple installation. Our tube diffusers are available with a variety of membrane materials including our patented PTFE membranes designed to use less energy and require minimal maintanance.The one-piece light weight but strong ABS body with PVC support pipes makes handling during installation very easy. SSI Tube Diffusers are built on channel pipe or round pipe by request.Channel pipes allow for a uniform bubble pattern the whole length of the diffuser whereas a round pipe, the membrane has a tendency to stick when inflated, The membrane fits snugly along the channel pipe making the membrane resistant to flexure tears along the perforation lines.


  •  Tubes feature channel style body to reducestrain on the membranes particularly inon/off operation.

  •  Diameter 2"(62 m m) an d 3" (90 m m).

  •  Saddle connection for 4" pipe to reduceinstallation time, also available with 3.4'' NPT connection.

  •  High Efficiency (SOTE) and low pressuredrops tested according to ASCE standards.

  •  ABS body temperature resistant up to 100℃.

  •  Membrane with low plasticizer content toreduce shrinkage and loss of elasticity.


MODEL型号

AFTS(N)21000

AFTS(N)31000

Active Surface Area(m2)

有效面积

0.15

0.22

Design  Flow (m³/hr)

设计风量

2.6-14.5

3.4-22

Membrane Thickness(mm)

膜片厚度

2

2

Bubble Size(mm)气泡直径

1-2

1-2

Hole Size孔缝尺寸(mm)

1mm or 2mm

1mm or 2mm

slit Quantity

膜片打孔数量

13525

22500

SOTE%氧利用率

4.5m Watet Depth)

22-40

31-59

Drag Loss(Pa)

1285-2124

2200-4100

Service Life(year)寿命

5

5

Head Lossimage.pngSOTEimage.png
